Progressive nitrous control isn't about adding complexity — it's about applying power in a way the car can actually use. As horsepower increases and traction becomes more sensitive, simply turning nitrous on and off is often no longer the most effective strategy.
Nitrous Express offers multiple progressive controller options because different cars require different levels of control. From simple single-stage traction management to full multi-stage race control, the goal remains the same: deliver nitrous when conditions are right and apply it in a controlled, repeatable manner.
What Progressive Nitrous Control Actually Does
A progressive nitrous controller manages how nitrous is delivered once it is enabled. Instead of applying full power instantly, the controller can smoothly introduce nitrous over time or based on operating conditions.
Progressive control can be used to:
-
Reduce traction shock on launch.
-
Smooth power delivery as conditions change.
-
Improve consistency pass after pass.
-
Protect drivetrain components
Progressive controllers do not increase horsepower. They allow the car to use available horsepower more effectively.
Why Nitrous Express Offers Multiple Controller Options
Not every nitrous system requires the same level of sophistication.
A single-stage plate system on a street/strip car has very different needs than a multi-stage race car monitoring RPM, throttle position, boost, and air-fuel ratio. NX controllers are designed to scale with:
-
Power level
-
System complexity
-
Traction sensitivity
-
Racing application
That's where Max EZ, Max Solo, and Max 6 each serve a distinct purpose.
Max EZ: Simple Progressive Control for Single-Stage Systems
The NX Maximizer EZ is designed to provide basic, effective progressive control with minimal setup.
The Max EZ replaces the standard nitrous relay in NX systems, allowing installation in under 30 seconds by simply unplugging the relay and plugging the controller into the existing harness.
What the Max EZ Does
-
Pulses the nitrous and fuel solenoids to smoothly ramp in power
-
Automatically starts progression at 20% and ramps to 100%
-
Ramp time is adjustable from 0 to 4.5 seconds via a simple adjustment screw.
This smooth progression improves traction and reduces shock to the drivetrain, making a single-stage system easier to manage.
Best Suited For
-
Single-stage plate or single-nozzle systems
-
Street/strip cars
-
Racers who want simplicity and repeatability
The Max EZ supports a total solenoid draw of up to 40 amps, making it ideal for most single-stage NX systems without unnecessary complexity.
Max Solo: Compact, Programmable Control for Single-Stage Precision
The NX Maximizer Solo is a plug-and-play, single-stage progressive controller designed for racers who want more control than entry-level progression while maintaining a compact, clean installation.
Key Capabilities
-
5-point time-based progressive ramp
-
Optional activation delay
-
Built-in RPM and TPS cutoffs
-
Real-time data display via Active Screen
-
Single-wire RPM and TPS inputs
The Solo replaces standard nitrous relays and uses a separate solenoid driver module, simplifying wiring while providing significantly more adjustability than basic progressive controllers.
Best Suited For
-
Single-stage systems requiring precise control
-
Racers who want RPM and TPS-based safety limits
-
Cars where consistency and monitoring matter
The Max Solo bridges the gap between basic progression and full-race controllers, offering advanced control without the multi-stage complexity.

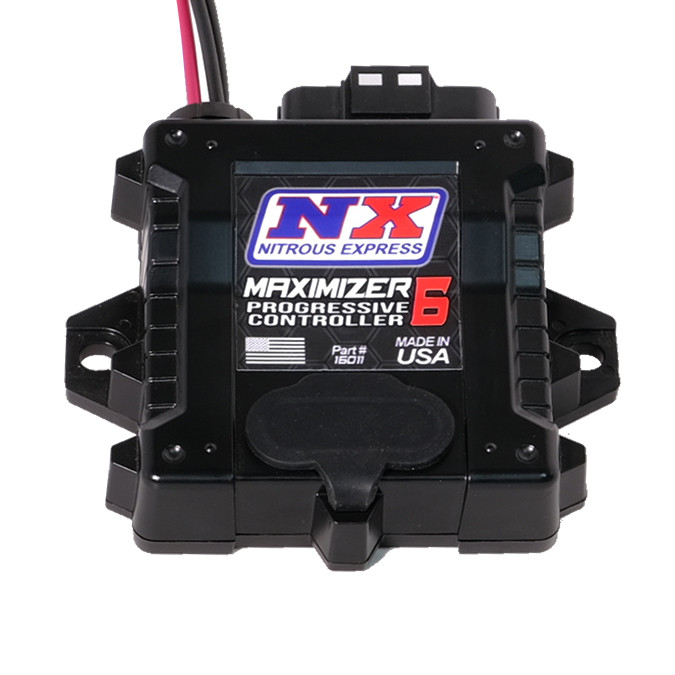

Max 6: Full Progressive Control for Serious Race Applications
The NX Maximizer 6 is a true race-level progressive nitrous controller, designed for high-horsepower and multi-stage applications where control and safety are critical.
Stage Control & Hardware
-
Controls up to four nitrous stages
-
Internal drivers for Stage 1 and Stage 2
-
Up to 70 amps per stage
-
140 amps in single-stage mode
-
-
Stages 3 and 4 supported with external drivers
Progression Options
The Max 6 allows nitrous delivery to be controlled based on:
-
Time
-
RPM
-
Vehicle speed (MPH)
-
Throttle position
-
Boost pressure
This flexibility allows the controller to match nitrous delivery to traction, gearing, and engine load across a wide range of racing styles.
Safety & Monitoring
The Max 6 monitors:
-
Throttle position
-
Engine RPM
-
Nitrous pressure
-
Boost or vacuum
-
AFR (with wideband input)
-
Three additional user-defined sensors
If conditions fall outside user-defined limits, the controller can reduce or shut off nitrous flow to protect the engine.
Data Logging & Setup
-
Logs all inputs automatically
-
Stores data for 100+ quarter-mile runs
-
Configured via Windows-based software
-
Optional 4-inch touchscreen display for live tuning
Best Suited For
-
Multi-stage nitrous systems
-
High-horsepower race cars
-
Scramble and advanced power strategies
-
Applications where data and protection matter
The Max 6 is designed for racers who need total control, not just progression.
Progressive Controllers and Window Control: How They Work Together
Window control defines when nitrous is allowed to operate. Progressive control defines how nitrous is delivered once it is active.
-
Max EZ relies on external activation logic.
-
Max Solo includes built-in RPM and TPS cutoffs.
-
Max 6 integrates window control, progression, safety logic, and data logging into a single system.
For advanced race applications, integrating these functions into a single controller reduces wiring complexity and improves reliability.
Choosing the Right NX Controller
The right controller depends on system complexity, not horsepower alone.
-
Basic single-stage traction management → Max EZ
-
Single-stage precision with safety limits → Max Solo
-
Multi-stage, high-horsepower race control → Max 6
Progressive control should match the system — not exceed it.
Final Takeaway
Progressive nitrous controllers aren't about making systems complicated — they're about making power usable.
Nitrous Express offers multiple controller options because racers demand different levels of control. From simple single-stage progression to advanced multi-stage race management, the right controller helps deliver power when conditions are right — and protects the engine when they aren't.
