Product Overview

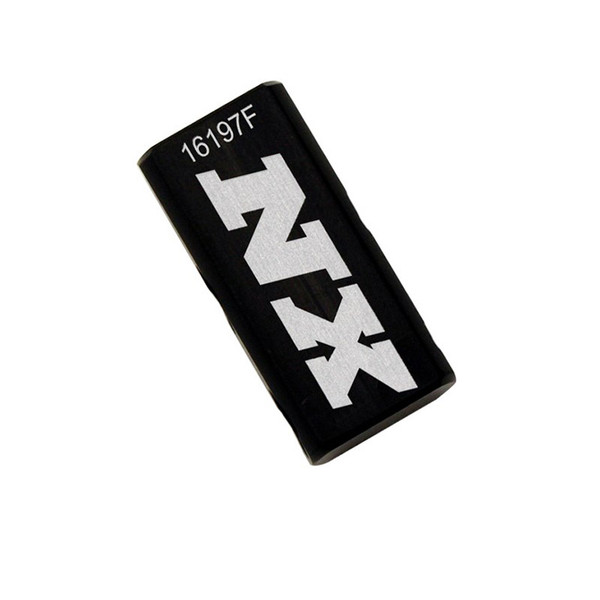

Compact distribution blocks were designed to assist in intake plumbing where space is very constrained.
- These blocks are 5/8" wide and 3/8" deep and thread directly into the bottom of a solenoid.
- The top outlet is 1/8" NPT
- The 4 outlets are 5/16-24 thread, and the inlet is 1/8" NPT.
- For AN outlet fittings, use NX SKU# 16150
- For compression outlet fittings, use NX SKU# 16149C
