Product Overview
This product is used and scratched/blemished, but remains fully functional.
Limited Quantity Available.
Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses, and hose clamps?

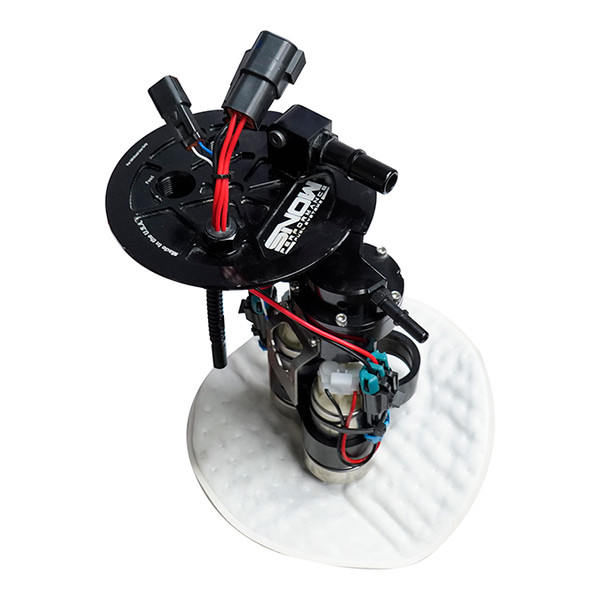

Snow Water Methanol has the solution! The Snow Water Methanol Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC-machined passages, making these the nicest high-output fuel pump upgrades on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC-machined bodies securely hold the fuel pumps, feature Viton chemical-resistant O-rings, and ensure a perfect, leak-free fit.
Snow Water Methanol Fuel Hats are engineered, CNC-machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels.
Snow Fuel Systems hats feature female 10AN ORB feed and 8AN ORB return ports. 90-degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN, or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with one or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450 LPH, 470 LPH [AKA HELLCAT 525], or 490 LPH [AKA 535 LPH]).
These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol, or any blend of Gasoline and Ethanol (E10, E85, E98, for example). These pumps are NOT compatible with methanol.
For street-driven applications, combining a smaller fuel pump with one or two larger fuel pumps can be beneficial. This allows you to street-drive on the smaller fuel pump, which has a lower amp draw and generates less heat. Once you're in boost, the larger pumps can be activated to support your high-horsepower needs. The easiest way to do this is to use a Snow Water Methanol Boost activated pressure switch (SKU# SNO-81014) and a Snow Water Methanol Multi-Pump Relay Module (SKU# SNF-20003).
Another awesome feature of the Snow Water Methanol Multi-Pump Fuel Hats is the pump sock, which combines all 3 pumps into 1 feed. This prevents the issue when one pump's sock is filled with fluid, while the others are not, causing fuel starvation during performance driving. Our 10-micron prefilter feeds all 3 pumps without requiring full submersion. This prefilter also mounts directly to the pumps, eliminating the need for bulkheads and other unnecessary hardware.
Pump Configuration
- 2 Pump Street able Configuration (one 450lph pump and one 470lph pump). This configuration can support 1000+ rwhp on E85 and 1300+ on gasoline. <- Current Selection
