Product Overview
This product is used and scratched/blemished, but remains fully functional. Utilizes 10 AN Feed & Return fittings.
Are you tired of multi-pump fuel upgrades that require a bunch of T-fittings, unreliable hoses, and hose clamps?

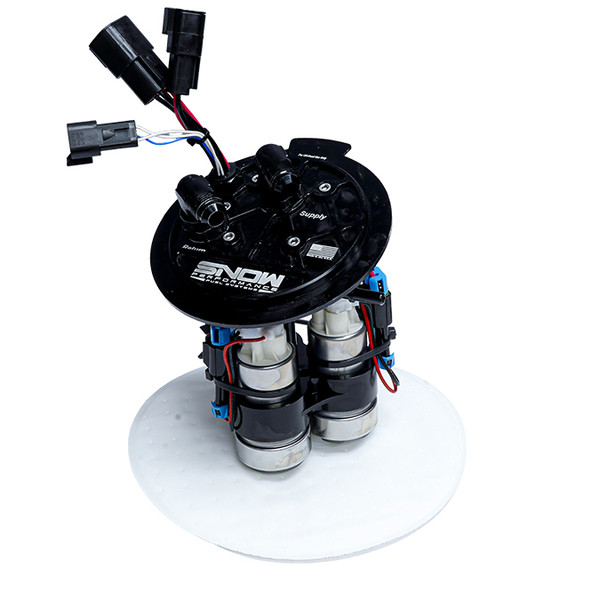

Snow Performance has the solution! The Snow Performance Multi-Pump Fuel Hats feature a billet aluminum manifold with CNC-machined passages, making these the nicest high-output fuel pump upgrades on the market! This design eliminates the need for hose clamps and rubber or plastic lines that can deteriorate and cause problems. No detail has been overlooked with these assemblies. The CNC-machined bodies securely hold the fuel pumps and feature Viton chemical-resistant O-rings, ensuring a leak-free fit.
Snow Performance Fuel Hats are engineered, CNC-machined, and built in the USA from 6061 billet aluminum. These billet hats receive a black anodized finish for the ultimate durability and corrosion resistance, making them compatible with E85 and other harsh fuels.
Snow fuel hats feature female 10AN ORB feed and 8AN ORB return ports. 90-degree swivel adapter fittings are sold separately to adapt to your desired combination of 10AN, 8AN, or 6AN lines. To meet your specific vehicle's fuel demands, these pump assemblies are configurable with 2 or 3 fuel pumps. No knock-off pumps here. Get OE reliability with genuine TI Automotive (Walbro) fuel pumps in your choice of flow rates (450 LPH, 470 LPH [AKA HELLCAT 525], or 490 LPH [AKA 535 LPH]).
These fuel pumps are designed for a return-style installation only. Do not attempt to run these pumps in a returnless application. These pumps are compatible with 100% Gasoline, 100% Ethanol, or any blend of Gasoline and Ethanol (E10, E85, E98, for example). These pumps are NOT compatible with methanol.
For street-driven applications, combining a smaller fuel pump with one or two larger fuel pumps can be beneficial. This allows you to street drive on the smaller fuel pump, which has a lower amp draw and generates less heat. Once you're in boost, the larger pumps can be activated to support your high-horsepower needs. The easiest way to do this is to use a Snow Performance Boost activated pressure switch (SKU: SNO-81014) and a Snow Performance Multi-Pump Relay Module (SKU: SNF-20003).
Another amazing feature of the Snow Performance Multi-Pump Fuel Hats is the pump sock, which combines all 3 pumps into 1 feed. This prevents the issue of one pump's sock being in fluid while the others are not, causing fuel starvation during performance driving. Our 10-micron pre-filter feeds all 3 pumps without requiring full submersion. This prefilter also mounts directly to the pumps, eliminating the need for bulkheads and other unnecessary hardware.
Pump Configuration:
- 3 Pump Streetable Configuration (One 450lph pump and Two 470lph pumps)- This configuration is capable of supporting 1500+ rwhp on E85 and up to 2000 rwhp on gasoline. This configuration draws 10-12% less current than the "Race" 3 pump version.
